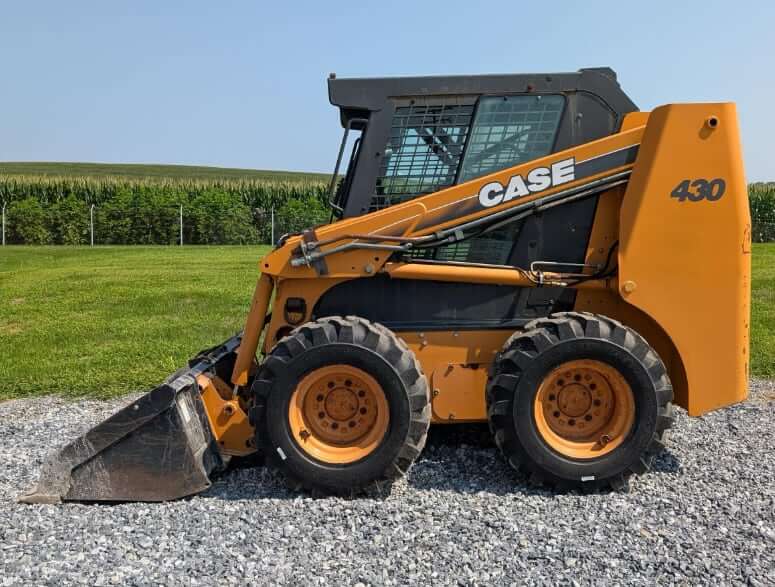

Case 430 Skid Steer Loader

Содержание

Габаритные размеры
Двигатель
Гидравлическая система
Ковшовый погрузчик
Эксплуатационные характеристики

Габаритные размеры

Clearance at Max Lift and Dump	8 ft (2 m)
Ground Clearance	9 in (23 cm)
Height — Top of Cab	6 ft (2 m)
Length w/o Bucket	9 ft (3 m)
Length with Bucket	11 ft (3 m)
Reach at Max Lift and Dump	21 in (54 cm)
Turning Radius from Center — inc bucket	77 in (195 cm)
Turning Radius from Center — machine rear	59 in (150 cm)
Wheelbase	4 ft (1 m)
Width Over Tires	4 ft (1 m)

Двигатель

Aspiration	naturally aspirated
Displacement	274 cu in (4,490 cu cm)
Engine Model	Family III 445/M2, Tier II certified
Number of Cylinders	4
Power Measured @	2300 rpm

Гидравлическая система

Pump Flow Capacity	21 gpm (79 lpm)
Pump Type	Gear
Relief Valve Pressure	3000 psi

Ковшовый погрузчик

Bucket Capacity	1 cu yd (0 cu m)
Operating Load Rating	2,000 lbs (907 kg)
Tipping Angle	4000 degrees

Эксплуатационные характеристики

Alternator Supplied Amperage	95 amps
Chain Box Fluid Capacity — each side	2 gal (6 l)
Cooling System Fluid Capacity	5 gal (17 l)
Engine Oil Fluid Capacity	3 gal (12 l)
Fuel Capacity	22 gal (83 l)
Hydraulic System Fluid Capacity	13 gal (50 l)
Max Speed	12 mph (19 kph)
Operating Voltage	12 volts
Operational Weight	6,875 lbs (3,118 kg)
Tire Size	12.00 x 16.5
