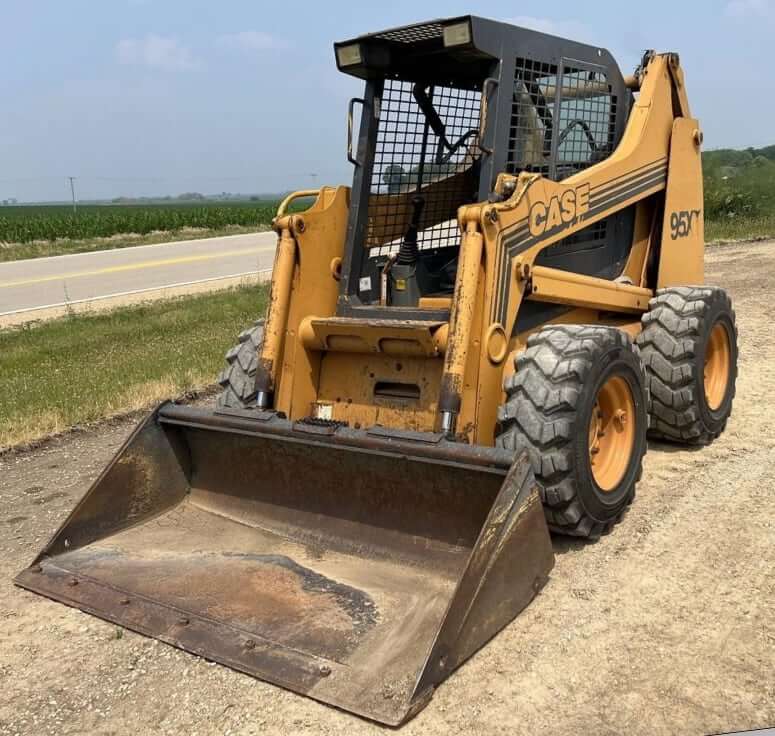

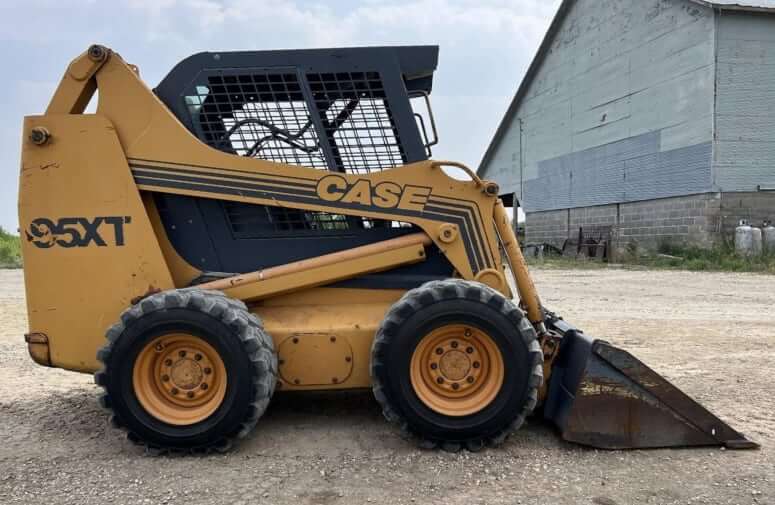

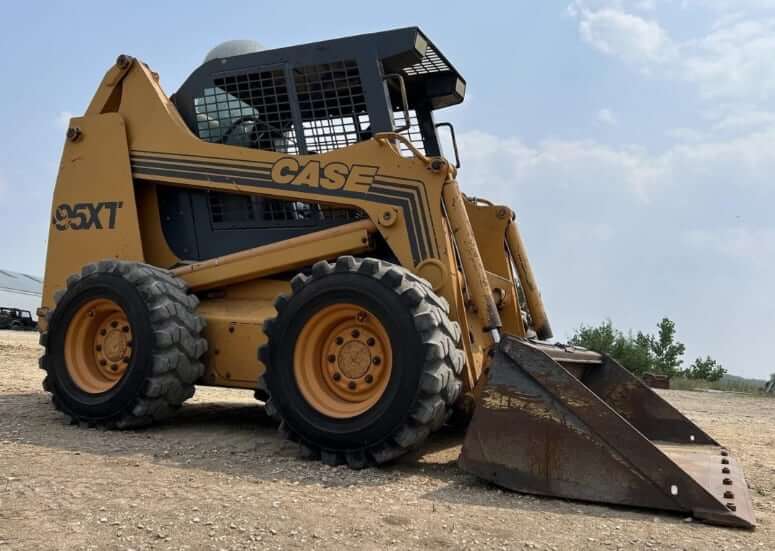

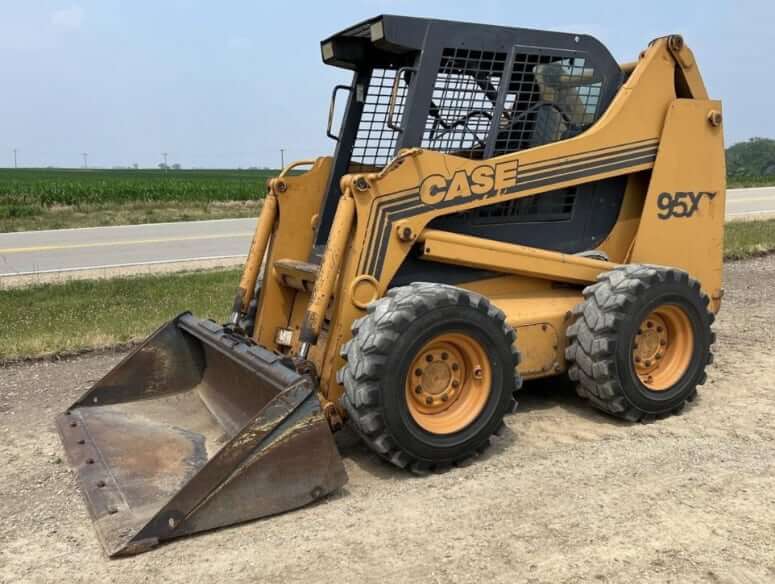

Case 95XT Skid Steer Loader

Содержание

Габаритные размеры
Двигатель
Гидравлическая система
Ковшовый погрузчик
Эксплуатационные характеристики

Габаритные размеры

Clearance at Max Lift and Dump	8 ft (2 m)
Ground Clearance	9 in (23 cm)
Height — Top of Cab	7 ft (2 m)
Length w/o Bucket	9 ft (3 m)
Length with Bucket	12 ft (4 m)
Reach at Max Lift and Dump	37 in (94 cm)
Turning Radius from Center — inc bucket	86 in (219 cm)
Turning Radius from Center — machine rear	65 in (165 cm)
Wheelbase	4 ft (1 m)
Width Over Tires	6 ft (2 m)

Двигатель

Aspiration	Turbocharged
Displacement	239 cu in (3,917 cu cm)
Engine Model	4T-390
Gross Power	74 hp (55 kw)
Number of Cylinders	4
Power Measured @	2500 rpm

Гидравлическая система

Pump Flow Capacity	28 gpm (104 lpm)
Pump Type	gear pump with integrated constant pressure valve
Relief Valve Pressure	3002 psi

Ковшовый погрузчик

Breakout Force	5800 psi
Bucket Capacity	1 cu yd (1 cu m)
Operating Load Rating	3,150 lbs (1,429 kg)
Tipping Angle	6300 degrees

Эксплуатационные характеристики

Alternator Supplied Amperage	65 amps
Chain Box Fluid Capacity — each side	2 gal (8 l)
Cooling System Fluid Capacity	4 gal (17 l)
Engine Oil Fluid Capacity	3 gal (11 l)
Fuel Capacity	20 gal (76 l)
Hydraulic System Fluid Capacity	18 gal (67 l)
Max Speed	11 mph (18 kph)
Operating Voltage	12 volts
Operational Weight	9,050 lbs (4,105 kg)
Tire Size	15.5×16.5
