Содержание

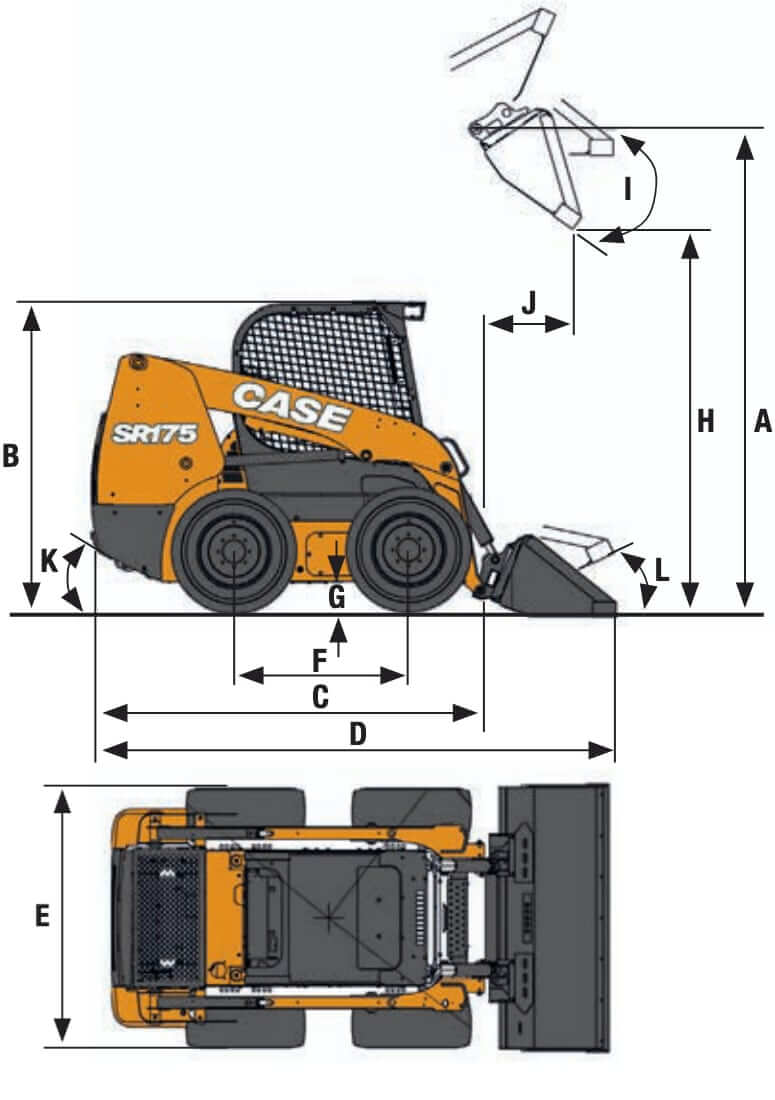

Габаритные размеры
| Clearance at Max Lift and Dump | 7 ft (2 m) |
| Ground Clearance | 7 in (18 cm) |
| Height — Top of Cab | 6 ft (2 m) |
| Length w/o Bucket | 8 ft (2 m) |
| Length with Bucket | 10 ft (3 m) |
| Reach at Max Lift and Dump | 19 in (47 cm) |
| Turning Radius from Center — inc bucket | 76 in (192 cm) |
| Turning Radius from Center — machine rear | 56 in (143 cm) |
| Wheelbase | 3 ft (1 m) |
| Width Over Tires | 5 ft (2 m) |
Двигатель
| Aspiration | Turbocharged |
| Displacement | 122 cu in (1,999 cu cm) |
| Engine Model | ISM N844T/M3 |
| Gross Power | 49 hp (37 kw) |
| Max Torque | 109 lbs ft (148 nm) |
| Number of Cylinders | 4 |
| Power Measured @ | 2900 rpm |
| Torque Measured @ | 1750 rpm |
Гидравлическая система
| Pump Flow Capacity | 16 gpm (59 lpm) |
| Pump Type | Gear |
| Relief Valve Pressure | 3000 psi |

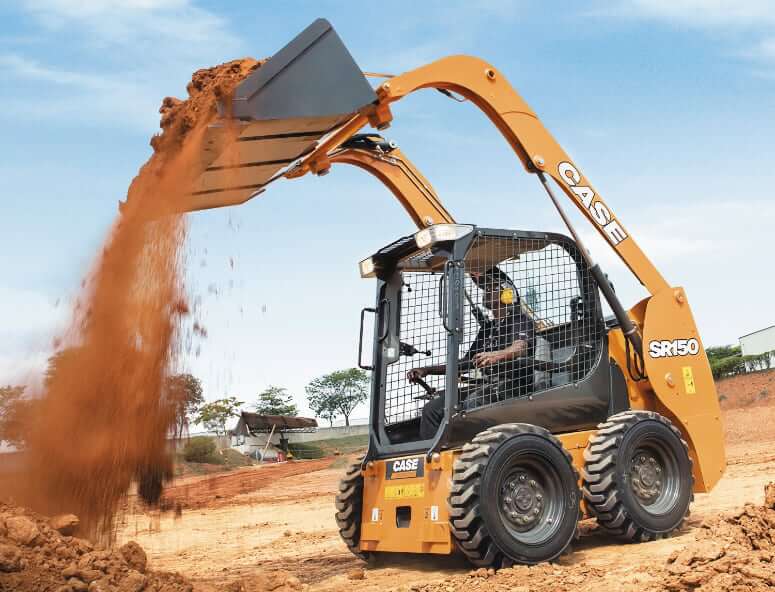

Ковшовый погрузчик
| Bucket Capacity | 1 cu yd (0 cu m) |
| Bucket Width | 60 in (152 cm) |
| Operating Load Rating | 1,500 lbs (680 kg) |
| Operating Width | 60 in (152 cm) |
| Tipping Angle | 3030 degrees |
Эксплуатационные характеристики
| Alternator Supplied Amperage | 120 amps |
| Chain Box Fluid Capacity — each side | 2 gal (6 l) |
| Engine Oil Fluid Capacity | 2 gal (8 l) |
| Fuel Capacity | 16 gal (61 l) |
| Hydraulic System Fluid Capacity | 4 gal (15 l) |
| Operating Speed | 7 mph (11 kph) |
| Operating Voltage | 12 volts |
| Operational Weight | 5,300 lbs (2,404 kg) |
| Tire Size | 10 x 16.5 |
