Содержание

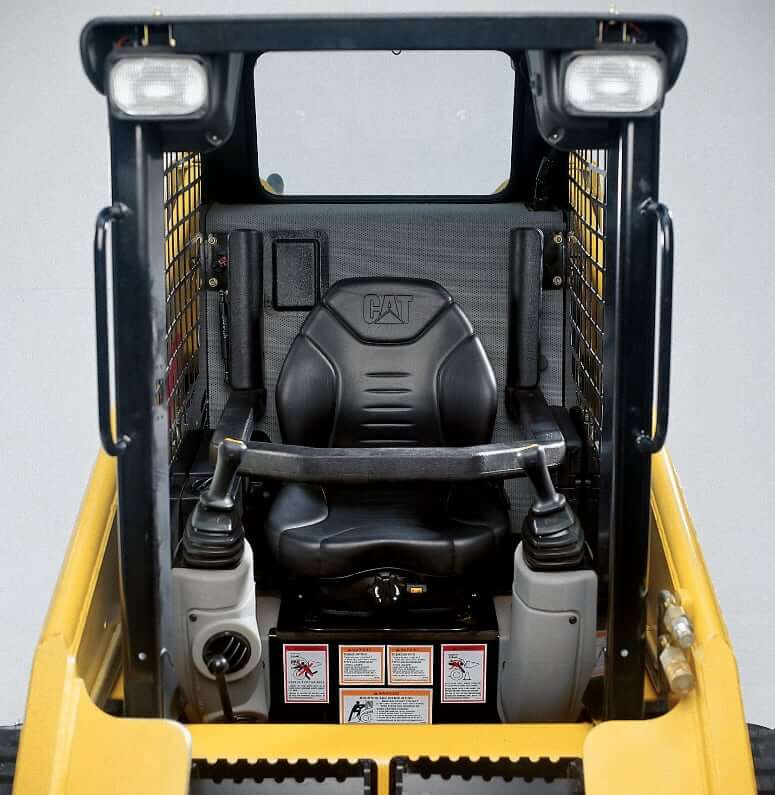

Кабина
| FOPS | SAEJ/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
| FOPS Level II | SAEJ/ISO 3449 APR 98 Level II and ISO 3449:1992 Level II (optional) |
| ROPS | SAE J1040 MAY94 and ISO3471:1994 |

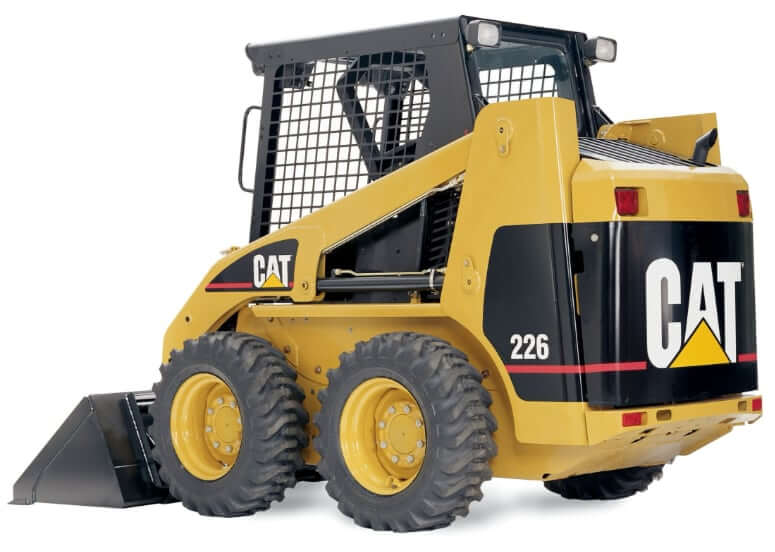

Габаритные размеры
| Bucket Pin Height — Carry Position | 9 in (23 cm) |
| Bucket Pin Height — Maximum Lift | 9 ft (3 m) |
| Bumper Overhang — Rear Axle | 38 in (97 cm) |
| Clearance at Max Lift and Dump | 7 ft (2 m) |
| Clearance at Maximum Lift and Dump | 85 in (216 cm) |
| Ground Clearance | 8 in (20 cm) |
| Length — With Bucket on Ground | 127 in (323 cm) |
| Length — Without Bucket | 99 in (251 cm) |
| Length w/o Bucket | 8 ft (3 m) |
| Length with Bucket | 11 ft (3 m) |
| Maximum Overall Height | 146 in (371 cm) |
| Reach — Maximum Lift/Dump | 20 in (51 cm) |
| Reach at Max Lift and Dump | 22 in (55 cm) |
| Turning Radius from Center — inc bucket | 79 in (202 cm) |
| Vehicle Width over Tires | 60 in (152 cm) |
| Wheel Base | 3 ft (1 m) |
| Wheelbase | 3 ft (1 m) |
| Width Over Tires | 6 ft (2 m) |
Двигатель
| Bore | 4 in (10 cm) |
| Displacement | 183 cu in (2,999 cu cm) |
| Engine Make | Caterpillar |
| Engine Model | Cat 3034C |
| Net Flywheel Power | 41 hp (31 kw) |
| Number of Cylinders | 4 |
| Power Measured @ | 2600 rpm |
| Stroke | 4 in (10 cm) |
Гидравлическая система
| Hydraulic Flow | Standard flow |
| Loader Hydraulic Flow | 15 gpm (57 lpm) |
| Loader Hydraulic Pressure | 3300 psi |
| Pump Flow Capacity | 15 gpm (58 lpm) |

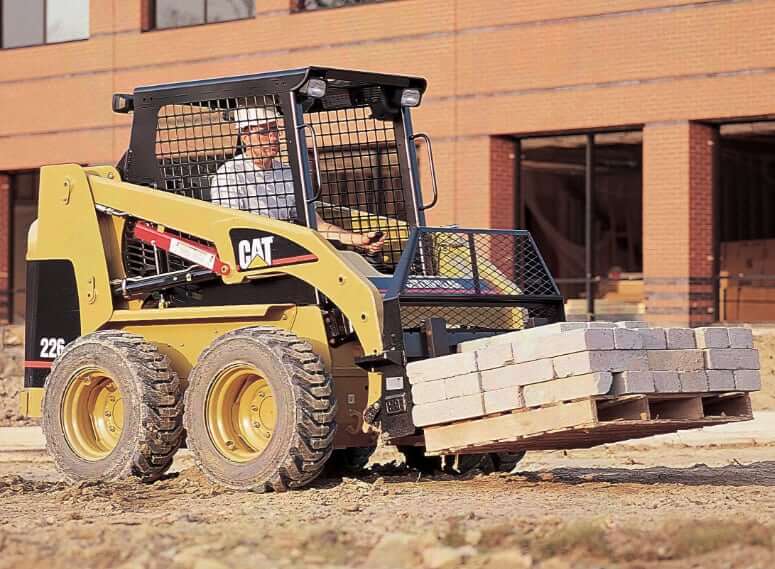

Ковшовый погрузчик
| Bucket Capacity | 1 cu yd (0 cu m) |
| Operating Load Rating | 1,500 lbs (680 kg) |
| Tipping Angle | 2710 degrees |
Эксплуатационные характеристики
| Breakout Force — Lift Cylinder | 3,136 lbs (1,422 kg) |
| Breakout Force — Tilt Cylinder | 3,903 lbs (1,770 kg) |
| Fuel Capacity | 16 gal (60 l) |
| Hydraulic System Fluid Capacity | 15 gal (55 l) |
| Max Speed | 7 mph (11 kph) |
| Operating Speed | 7 mph (11 kph) |
| Operational Weight | 5,830 lbs (2,644 kg) |
| Rated Operating Capacity | 1,500 lbs (680 kg) |
| Rated Operating Capacity with Optional Counterweight | 1,600 lbs (726 kg) |
| Tipping Load | 3,000 lbs (1,361 kg) |

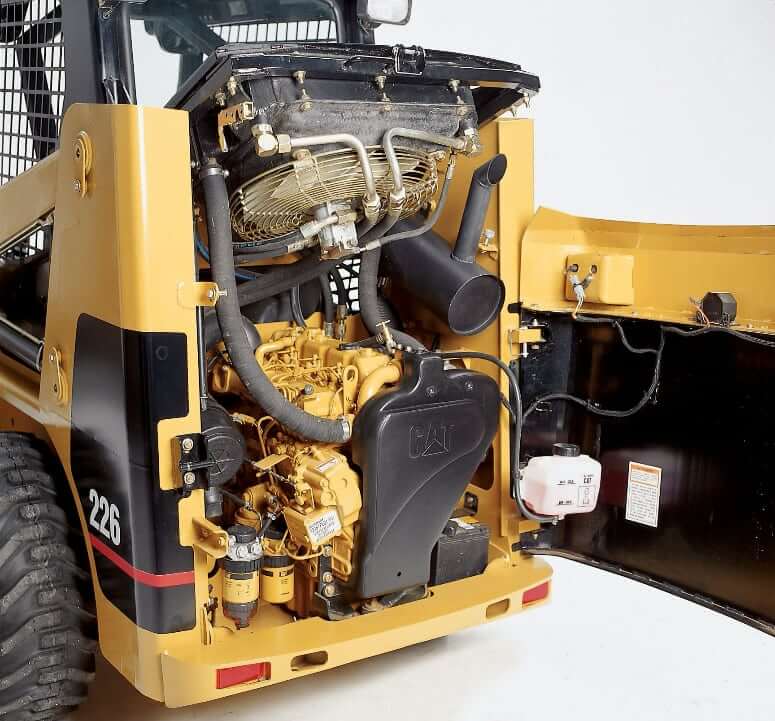

Заправочные объемы техн. жидкостей
| Chain Box — Each Side | 2 gal (6 l) |
| Cooling System | 3 gal (10 l) |
| Engine Crankcase | 2 gal (9 l) |
| Fuel Tank | 17 gal (64 l) |
| Hydraulic System | 15 gal (55 l) |
| Hydraulic Tank | 9 gal (35 l) |

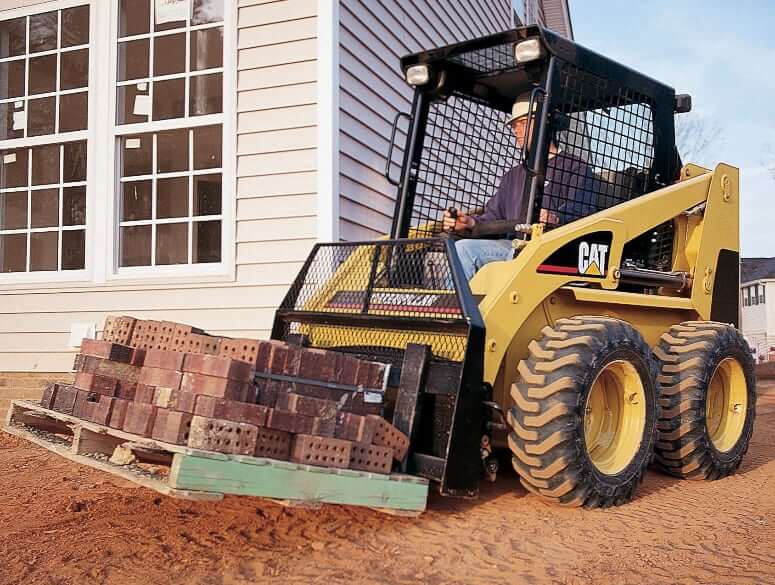

Весовые характеристики
| Operating Weight | 5,645 lbs (2,561 kg) |
