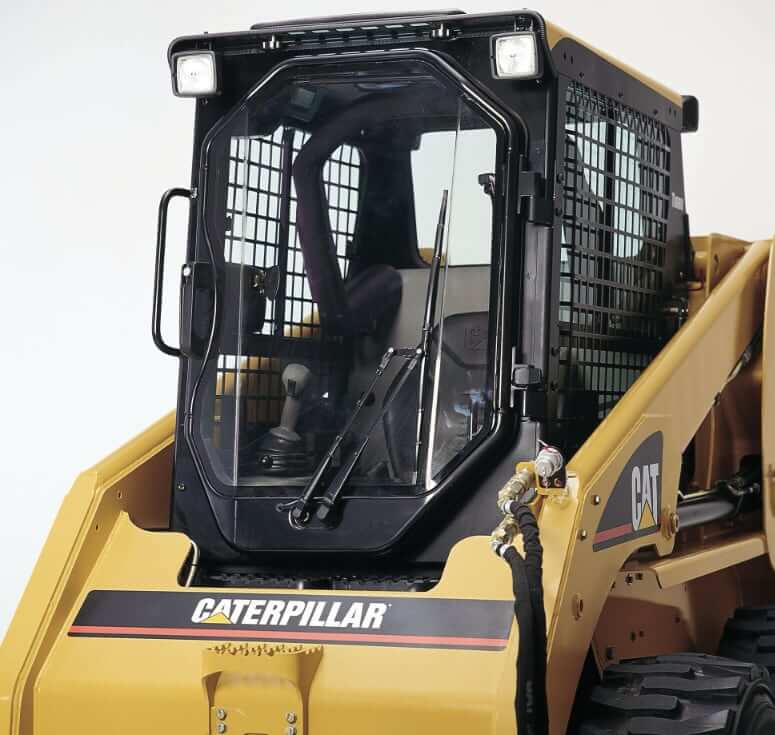

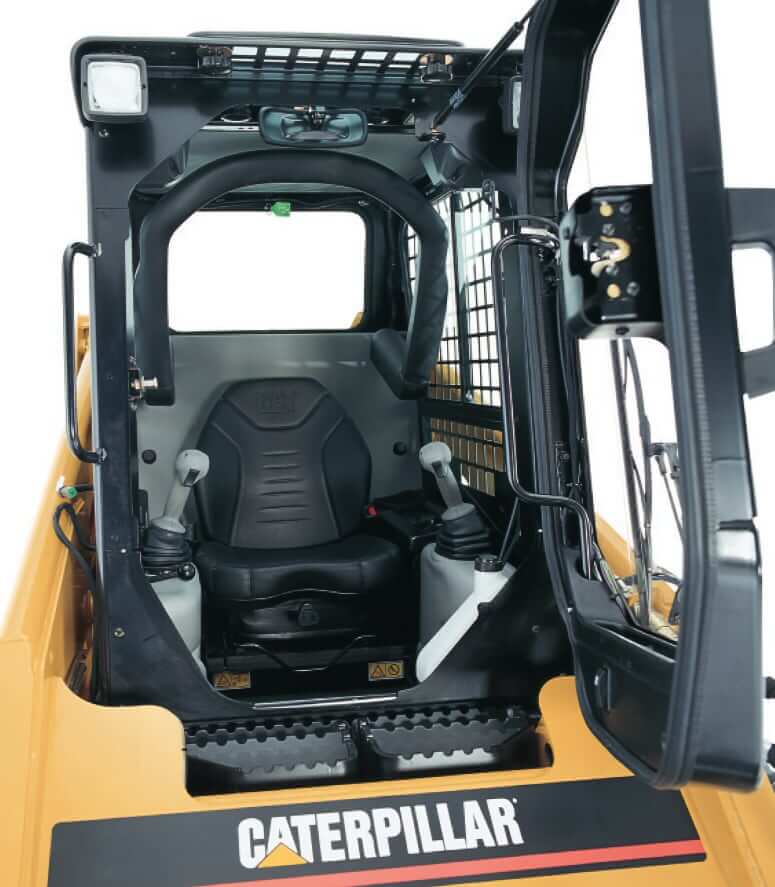

Кабина
| FOPS | SAE J/ISO 3449 APR98 Level I and ISO3449:1992 Level I |
| FOPS Level II | SAE J/ISO 3449 APR98 Level II and ISO 3449:1992 Level II (optional) |
| ROPS | SAE J1040 MAY94 and ISO3471:1994 |

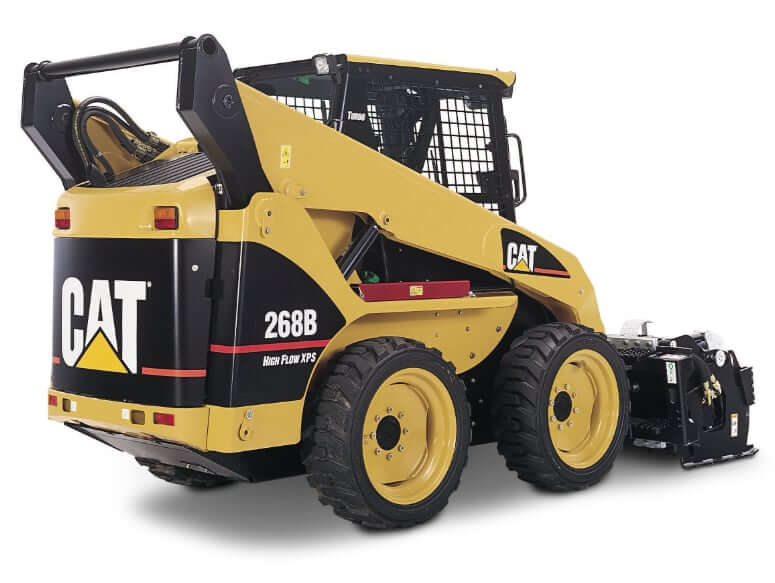

Габаритные размеры
| Bucket Pin Height — Carry Position | 8 in (21 cm) |
| Bucket Pin Height — Maximum Lift | 11 ft (3 m) |
| Bucket Pin Reach — Maximum Lift | 14 in (35 cm) |
| Bumper Overhang — Rear Axle | 41 in (104 cm) |
| Clearance at Max Lift and Dump | 8 ft (2 m) |
| Clearance at Maximum Lift and Dump | 95 in (241 cm) |
| Ground Clearance | 8 in (20 cm) |
| Length — With Bucket on Ground | 142 in (361 cm) |
| Length — Without Bucket | 114 in (290 cm) |
| Length w/o Bucket | 10 ft (3 m) |
| Length with Bucket | 12 ft (4 m) |
| Maximum Overall Height | 160 in (406 cm) |
| Maximum Reach — With Arms Parallel | 52 in (132 cm) |
| Reach — Maximum Lift/Dump | 33 in (84 cm) |
| Reach at Max Lift and Dump | 33 in (83 cm) |
| Turn Radius from Center — Bucket | 86 in (218 cm) |
| Turn Radius from Center — Coupler | 52 in (132 cm) |
| Turn Radius from Center — Rear | 67 in (170 cm) |
| Turning Radius from Center — inc bucket | 86 in (218 cm) |
| Turning Radius from Center — machine rear | 67 in (170 cm) |
| Vehicle Width over Tires | 72 in (183 cm) |
| Wheel Base | 4 ft (1 m) |
| Wheelbase | 4 ft (1 m) |
| Width Over Tires | 6 ft (2 m) |
Двигатель
| Aspiration | turbocharged |
| Bore | 4 in (9 cm) |
| Engine Make | Caterpillar |
| Engine Model | Cat 3044C DIT |
| Engine Power — ISO 14396 | 80 hp (60 kw) |
| Gross Power — SAE J1995 | 82 hp (61 kw) |
| Net Flywheel Power | 76 hp (57 kw) |
| Net Power — EEC 80/1269 | 77 hp (57 kw) |
| Net Power — ISO 9249 EEC | 77 hp (57 kw) |
| Net Power — SAE 1349 | 76 hp (57 kw) |
| Stroke | 5 in (12 cm) |
Гидравлическая система
| Hydraulic Flow | High Flow XPS |
| Hydraulic Power | 78 hp (58 kw) |
| Loader Hydraulic Flow | 33 gpm (125 lpm) |
| Loader Hydraulic Pressure | 4061.06 psi |
| Maximum Loader Hydraulic Flow | 33 gpm (125 lpm) |
| Maximum Loader Hydraulic Pressure | 4060 psi |
| Pump Flow Capacity | 33 gpm (125 lpm) |
| Relief Valve Pressure | 4061.1 psi |
Ковшовый погрузчик
| Breakout Force | 5507.2 psi |
| Operating Load Rating | 2,699 lbs (1,224 kg) |
| Tipping Angle | 5399.2 degrees |
Эксплуатационные характеристики
| Alternator Supplied Amperage | 90 amps |
| Breakout Force — Lift Cylinder | 5,192 lbs (2,355 kg) |
| Breakout Force — Tilt Cylinder | 5,508 lbs (2,498 kg) |
| Chain Box Fluid Capacity — each side | 2 gal (8 l) |
| Cooling System Fluid Capacity | 3 gal (10 l) |
| Engine Oil Fluid Capacity | 3 gal (10 l) |
| Fuel Capacity | 24 gal (90 l) |
| Hydraulic System Fluid Capacity | 14 gal (53 l) |
| Max Speed | 7 mph (12 kph) |
| Operating Voltage | 12 volts |
| Operational Weight | 7,994 lbs (3,626 kg) |
| Rated Operating Capacity | 2,700 lbs (1,225 kg) |
| Rated Operating Capacity with Optional Counterweight | 2,750 lbs (1,247 kg) |
| Tipping Load | 5,613 lbs (2,546 kg) |
| Tire Size | 12×16.5 10PR |
Power Train
| Travel Speed Forward | 7 mph (12 kph) |
| Travel Speed Forward — 2-Speed Option | 11 mph (18 kph) |
| Travel Speed Reverse | 7 mph (12 kph) |
| Travel Speed Reverse — 2-Speed Option | 11 mph (18 kph) |
Заправочные объемы техн. жидкостей
| Chain Box — Each Side | 2 gal (8 l) |
| Cooling System | 3 gal (10 l) |
| Engine Crankcase | 3 gal (10 l) |
| Fuel Tank | 24 gal (90 l) |
| Hydraulic System | 14 gal (53 l) |
| Hydraulic Tank | 9 gal (35 l) |
Весовые характеристики
| Operating Weight | 7,995 lbs (3,626 kg) |
