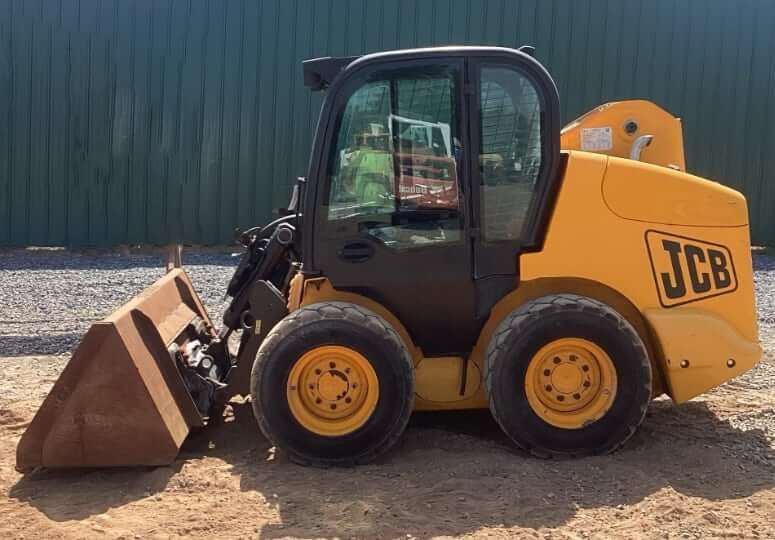

JCB 1110 Skid Steer Loader

Содержание

Габаритные размеры
Двигатель
Hydraulic
Ковшовый погрузчик
Operational

Габаритные размеры

Clearance at Max Lift and Dump	8 ft (2 m)
Height — Top of Cab	7 ft (2 m)
Length w/o Bucket	8 ft (2 m)
Length with Bucket	12 ft (4 m)
Reach at Max Lift and Dump	37 in (94 cm)
Turning Radius from Center — inc bucket	87 in (220 cm)
Turning Radius from Center — machine rear	66 in (167 cm)
Wheelbase	4 ft (1 m)
Width Over Tires	6 ft (2 m)

Двигатель

Aspiration	Turbo
Displacement	244 cu in (4,000 cu cm)
Engine Model	1104C-44
Number of Cylinders	4
Power Measured @	2200 rpm

Hydraulic

Pump Flow Capacity	20 gpm (76 lpm)
Pump Type	Hydrostatic drive pumps
Relief Valve Pressure	2682 psi

Ковшовый погрузчик

Breakout Force	4387.2 psi
Bucket Capacity	1 cu yd (1 cu m)
Operating Load Rating	2,425 lbs (1,100 kg)
Tipping Angle	4850.2 degrees

Operational

Alternator Supplied Amperage	72 amps
Chain Box Fluid Capacity — each side	3 gal (12 l)
Cooling System Fluid Capacity	4 gal (15 l)
Engine Oil Fluid Capacity	2 gal (9 l)
Fuel Capacity	28 gal (107 l)
Hydraulic System Fluid Capacity	9 gal (35 l)
Max Speed	7 mph (11 kph)
Operating Voltage	12 volts
Operational Weight	8,214 lbs (3,726 kg)
Tire Size	12 x 16.5 — 10pr
