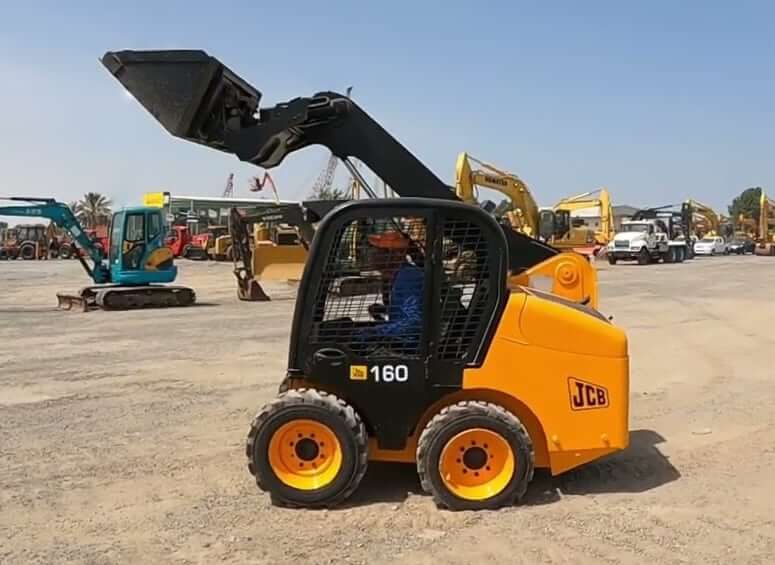

JCB 160 Skid Steer Loader

Содержание

Габаритные размеры
Двигатель
Гидравлическая система
Ковшовый погрузчик
Эксплуатационные характеристики

Габаритные размеры

Clearance at Max Lift and Dump	7 ft (2 m)
Height — Top of Cab	6 ft (2 m)
Length w/o Bucket	8 ft (2 m)
Length with Bucket	11 ft (3 m)
Reach at Max Lift and Dump	23 in (57 cm)
Turning Radius from Center — inc bucket	74 in (187 cm)
Turning Radius from Center — machine rear	62 in (158 cm)
Wheelbase	3 ft (1 m)
Width Over Tires	5 ft (1 m)

Двигатель

Aspiration	Naturally aspirated
Displacement	134 cu in (2,201 cu cm)
Engine Model	404C-22
Number of Cylinders	4
Power Measured @	2600 rpm

Гидравлическая система

Pump Flow Capacity	15 gpm (55 lpm)
Pump Type	Hydrostatic drive pumps
Relief Valve Pressure	2683 psi

Ковшовый погрузчик

Breakout Force	2998 psi
Bucket Capacity	0 cu yd (0 cu m)
Operating Load Rating	1,323 lbs (600 kg)
Tipping Angle	2645.6 degrees

Эксплуатационные характеристики

Alternator Supplied Amperage	55 amps
Chain Box Fluid Capacity — each side	5 gal (17 l)
Cooling System Fluid Capacity	2 gal (8 l)
Engine Oil Fluid Capacity	3 gal (9 l)
Fuel Capacity	21 gal (79 l)
Hydraulic System Fluid Capacity	8 gal (30 l)
Max Speed	6 mph (10 kph)
Operating Voltage	12 volts
Operational Weight	5,310 lbs (2,409 kg)
Tire Size	7.00 x 15 — 6 pr
