Содержание

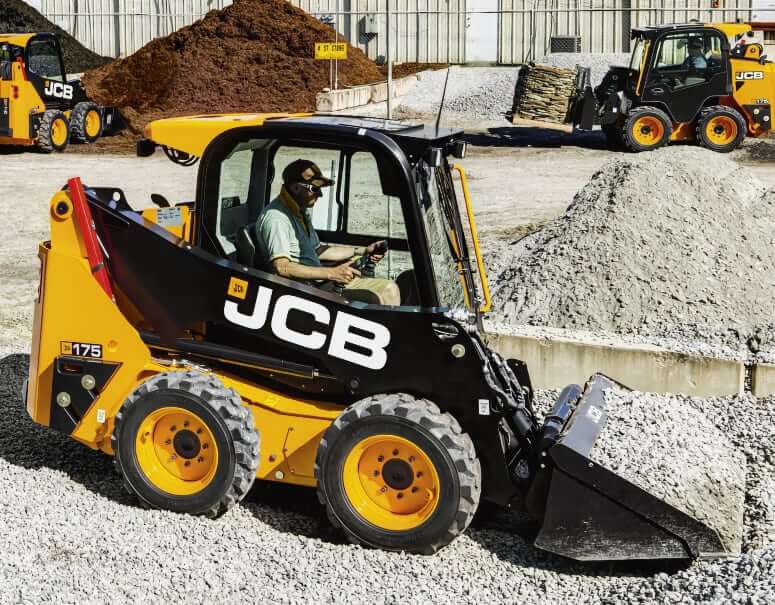

Заправочные объемы техн. жидкостей
| Engine coolant | 3 gal (10 l) |
| Engine Oil | 2 gal (8 l) |
| Fuel Tank — diesel | 24 gal (92 l) |
| Hydraulic system | 12 gal (44 l) |

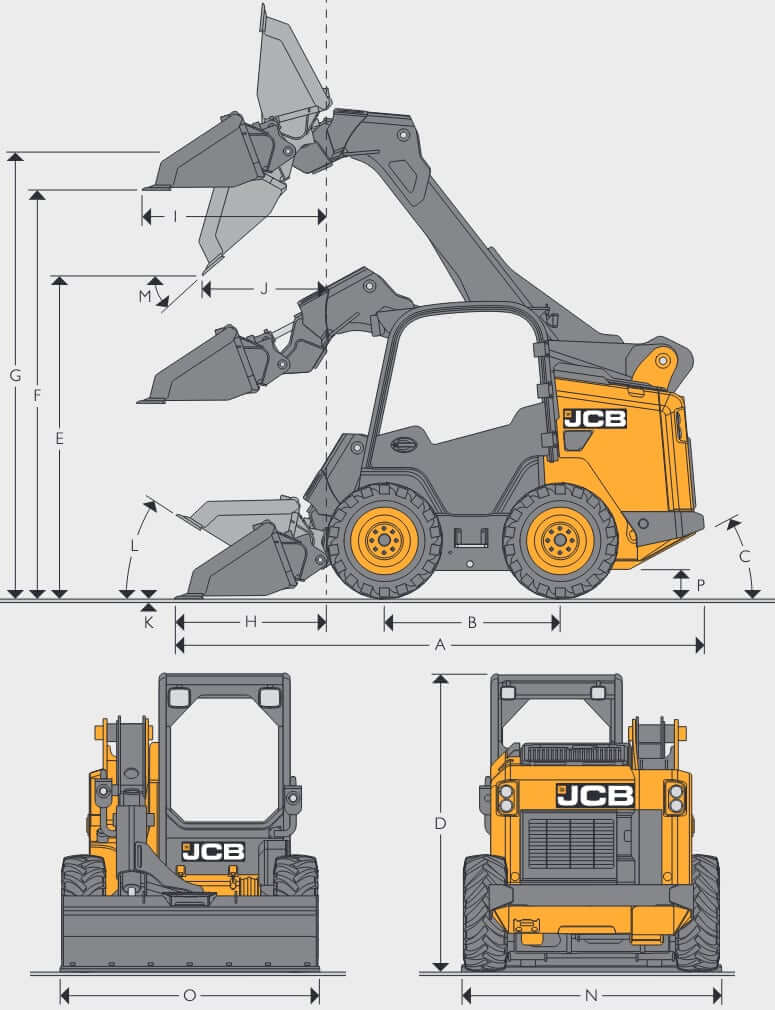

Габаритные размеры
| Angle of departure | 25 degrees |
| Bucket corner Turning radius | 7 ft (2 m) |
| Dig Depth | 394 in (1,000 cm) |
| Dump angle | 42 degrees |
| Dump Height | 8 ft (2 m) |
| Ground Clearance | 8 in (21 cm) |
| Loadover height | 9,318 ft (2,840 m) |
| Max. reach @ full height | 4 ft (1 m) |
| Overall height | 7 ft (2 m) |
| Overall Length | 138 in (349 cm) |
| Pin height | 10 ft (3 m) |
| Quick hitch Turning radius | 4 ft (1 m) |
| Reach @ ground level | 4 ft (1 m) |
| Rear chassis turning radius | 6 ft (2 m) |
| Rollback — Ground Level | 30 degrees |
| Wheelbase | 4 ft (1 m) |
| Width over tires | 60 in (152 cm) |
Двигатель
| Alternator | 100 amps |
| Aspiration | Turbo |
| Battery | 12 V |
| Cooling system | Diesel |
| Displacement | 1,860 cu in (30,480 cu cm) |
| Emissions Certification | EPA-T4F (EU St3B) |
| Engine Model | Kohler KDI 1903TCR/26B |
| Engine oil service interval | 500 hours |
| Fuel | Diesel |
| Gross Power | 56 hp (42 kw) |
| Hydraulically driven cooling fan | Yes |
| Max Torque | 166 lbs ft (225 nm) |
| Power Measured @ | 2400 rpm |
| Starter Motor | 2 hp (1 kw) |
| Torque Measured @ | 1200 rpm |
Гидравлическая система
| Pump Flow Capacity | 19 gpm (70 lpm) |
| Relief Valve Pressure | 3335 psi |
Ковшовый погрузчик
| Breakout Force | 4,718 lbs (2,140 kg) |
| Bucket Capacity | 1 cu yd (0 cu m) |
| Bucket Width | 66 in (168 cm) |
| Loader lift capacity with bucket | 3,461 lbs (1,570 kg) |
| Operating Load Rating | 1,750 lbs (794 kg) |
| Operating Width | 63 in (160 cm) |
| Tipping load — no counterweight | 3,505 lbs (1,590 kg) |
Эксплуатационные характеристики
| Operational Weight | 6,819 lbs (3,093 kg) |
Колеса
| Standard | 10 x 16.5 — 8 PR Xtra Wall Off Road |

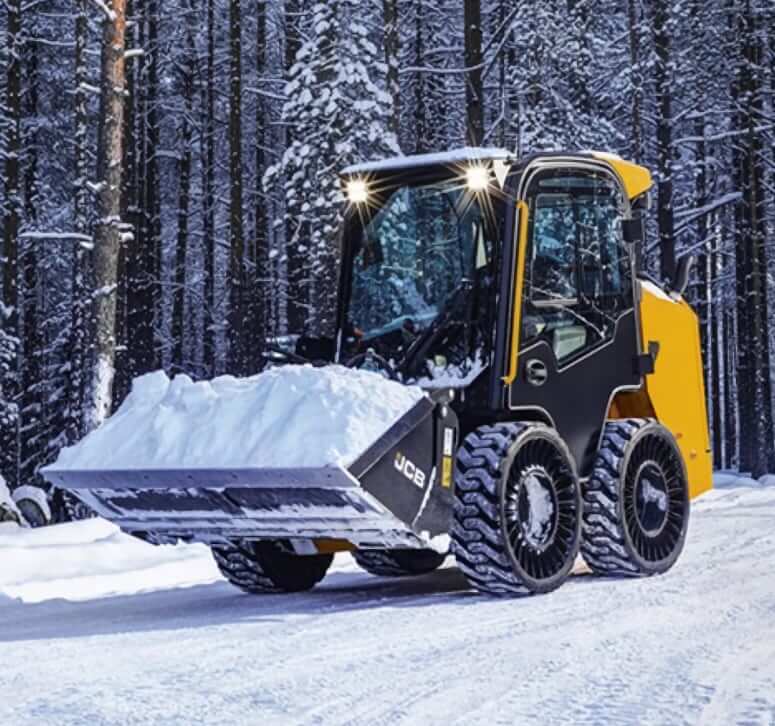

Трансмиссия
| Model | Single Speed |
| Travel Speed | 8 mph (12 kph) |
