Содержание
Заправочные объемы техн. жидкостей
| Engine coolant | 6 gal (22 l) |
| Engine Oil | 4 gal (15 l) |
| Fuel Tank | 27 gal (103 l) |
| Hydraulic system | 15 gal (55 l) |

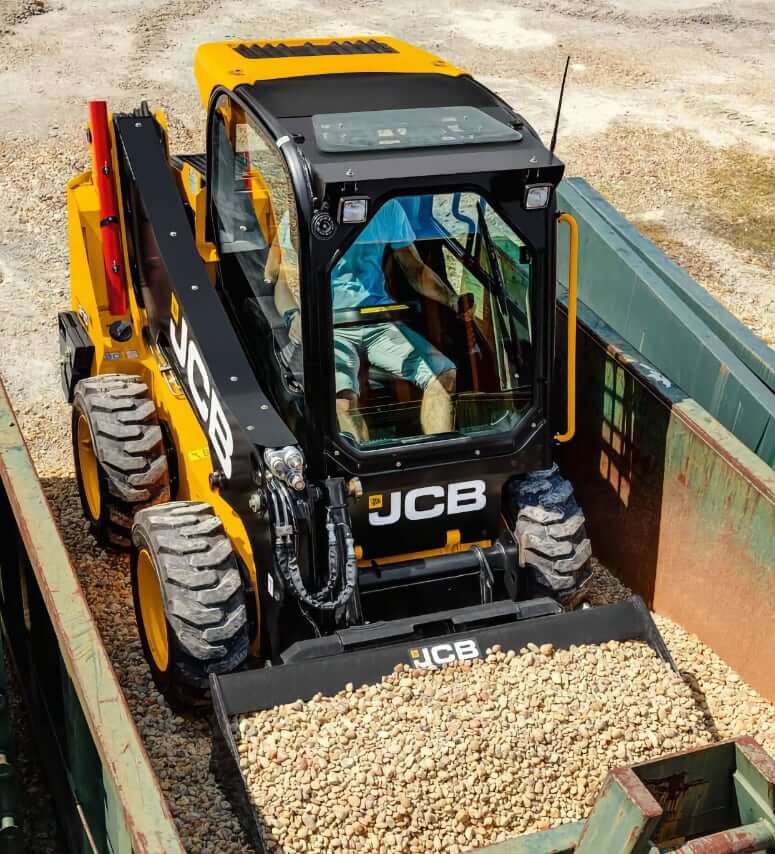

Габаритные размеры
| Angle of departure | 29 degrees |
| Bucket corner Turning radius | 8 ft (2 m) |
| Dig Depth | 394 in (1,000 cm) |
| Dump angle | 42 degrees |
| Dump Height | 8 ft (2 m) |
| Ground Clearance | 10 in (25 cm) |
| Loadover height | 9,515 ft (2,900 m) |
| Max. reach @ full height | 3 ft (1 m) |
| Overall height | 7 ft (2 m) |
| Overall Length | 153 in (388 cm) |
| Pin height | 11 ft (3 m) |
| Quick hitch Turning radius | 5 ft (2 m) |
| Reach @ ground level | 4 ft (1 m) |
| Rear chassis turning radius | 6 ft (2 m) |
| Rollback — Ground Level | 30 degrees |
| Wheelbase | 4 ft (1 m) |
| Width over tires | 71 in (180 cm) |
Двигатель
| Alternator | 95 amps |
| Aspiration | Turbo |
| Battery | 12 V |
| Cooling system | Diesel |
| Displacement | 4,399 cu in (72,087 cu cm) |
| Emissions Certification | EPA-T4F (EU St3B) |
| Engine Model | EcoMAX TCAE-55 |
| Engine oil service interval | 500 hours |
| Fuel | Diesel |
| Gross Power | 74 hp (55 kw) |
| Hydraulically driven cooling fan | Yes |
| Max Torque | 295 lbs ft (400 nm) |
| Power Measured @ | 2400 rpm |
| Torque Measured @ | 1200 rpm |
Гидравлическая система
| Pump Flow Capacity | 24 gpm (90 lpm) |
| Relief Valve Pressure | 483.8 psi |
Ковшовый погрузчик
| Breakout Force | 6,543 lbs (2,968 kg) |
| Bucket Capacity | 1 cu yd (0 cu m) |
| Bucket Width | 78 in (199 cm) |
| Loader lift capacity with bucket | 5,884 lbs (2,669 kg) |
| Operating Load Rating | 2,250 lbs (1,021 kg) |
| Operating Width | 72 in (183 cm) |
| Tipping Angle | 5055.2 degrees |
Эксплуатационные характеристики
| Operational Weight | 8,215 lbs (3,726 kg) |

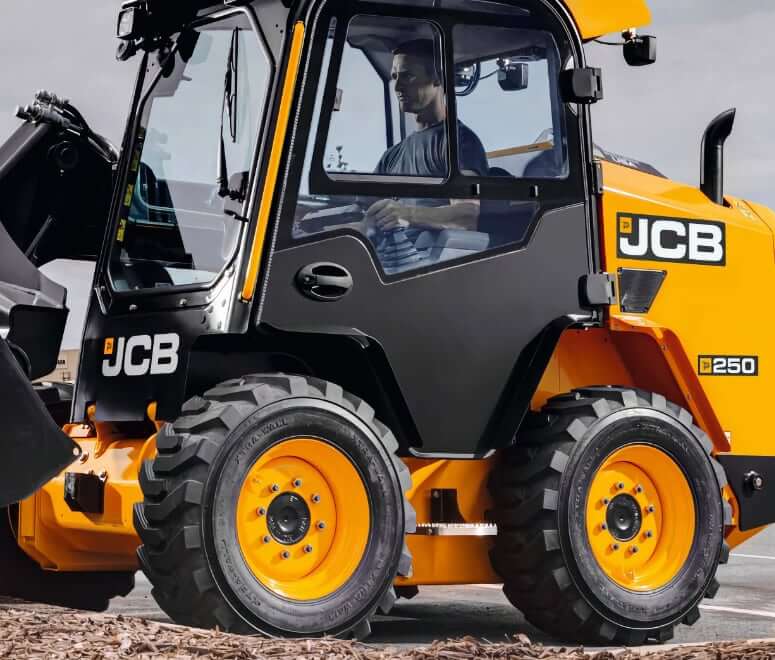

Колеса
| Standard | 12 x 16.5 — 10 PR Xtra Wall Off Road |
Трансмиссия
| Model | Two Speed |
| Travel Speed | 12 mph (19 kph) |
