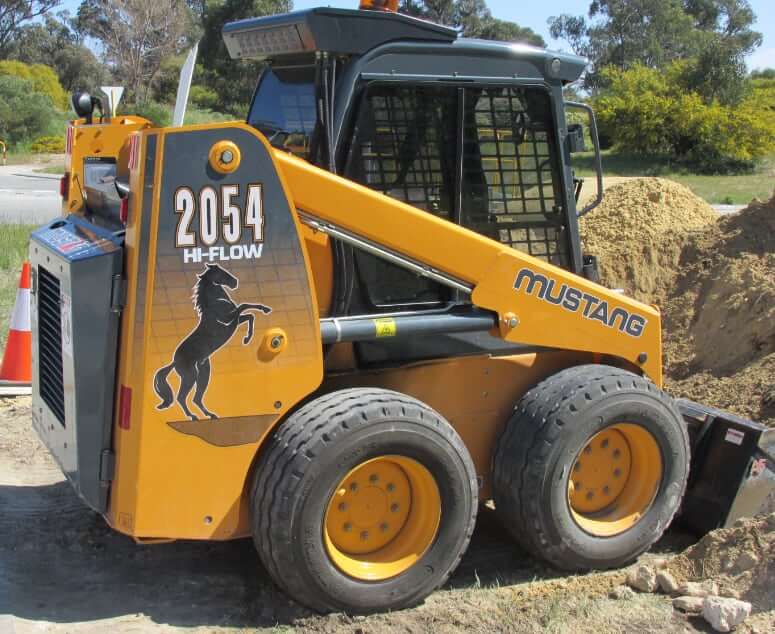

Mustang 2054 Skid Steer Loader

Содержание

Габаритные размеры

Clearance at Max Lift and Dump	8 ft (2 m)
Ground Clearance	8 in (19 cm)
Height — Top of Cab	10 ft (3 m)
Length w/o Bucket	8 ft (2 m)
Length with Bucket	10 ft (3 m)
Reach at Max Lift and Dump	24 in (61 cm)
Turning Radius from Center — machine rear	59 in (150 cm)
Wheelbase	3 ft (1 m)
Width Over Tires	6 ft (2 m)

Pump Flow Capacity	28 gpm (106 lpm)
Relief Valve Pressure	3000 psi

Alternator Supplied Amperage	700 amps
Fuel Capacity	14 gal (54 l)
Hydraulic System Fluid Capacity	13 gal (49 l)
Max Speed	7 mph (12 kph)
Operating Voltage	12 volts
Operational Weight	6,050 lbs (2,744 kg)
