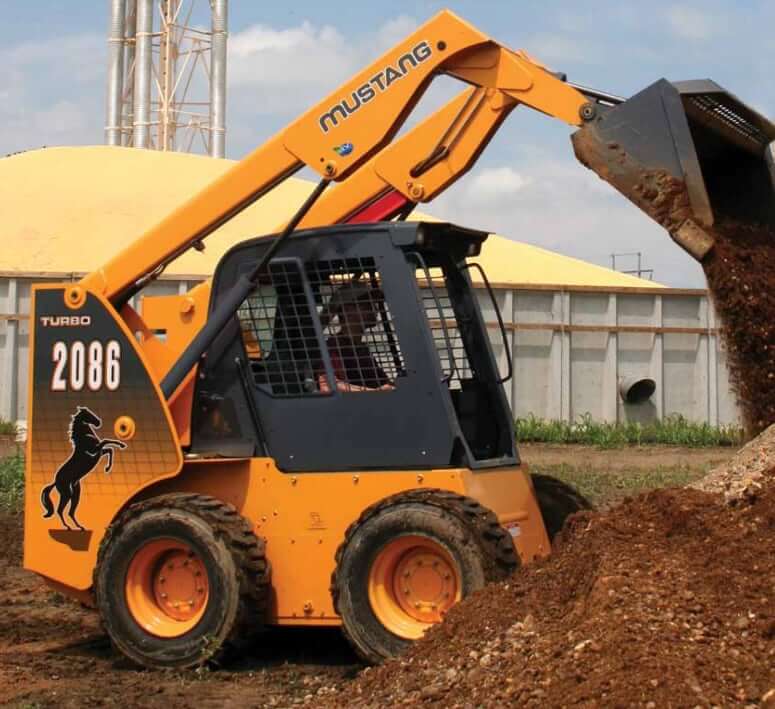

Mustang 2086 Skid Steer Loader

Содержание

Габаритные размеры

Clearance at Max Lift and Dump	2 ft (1 m)
Ground Clearance	8 in (20 cm)
Height — Top of Cab	7 ft (2 m)
Length w/o Bucket	9 ft (3 m)
Length with Bucket	11 ft (3 m)
Reach at Max Lift and Dump	123 in (312 cm)
Turning Radius from Center — machine rear	65 in (166 cm)
Wheelbase	4 ft (1 m)
Width Over Tires	5 ft (2 m)

Pump Flow Capacity	22 gpm (81 lpm)
Relief Valve Pressure	3000 psi

Alternator Supplied Amperage	95 amps
Fuel Capacity	24 gal (91 l)
Hydraulic System Fluid Capacity	16 gal (61 l)
Max Speed	11 mph (18 kph)
Operating Voltage	12 volts

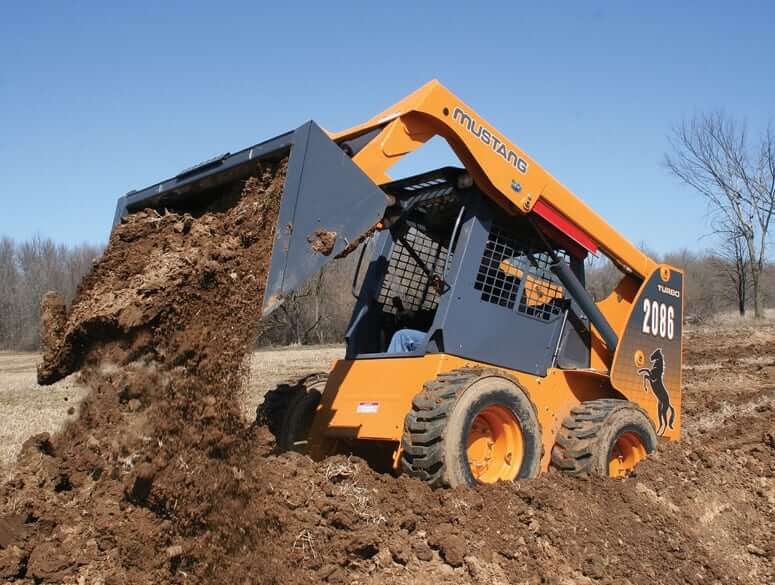

Operational Weight	7,900 lbs (3,583 kg)
