Ковш
| Bucket Capacity — heaped | 3 cu yd (2 cu m) |
| Bucket Capacity — struck | 3 cu yd (2 cu m) |
| Dump Clearance at Max Raise | 9 ft (3 m) |

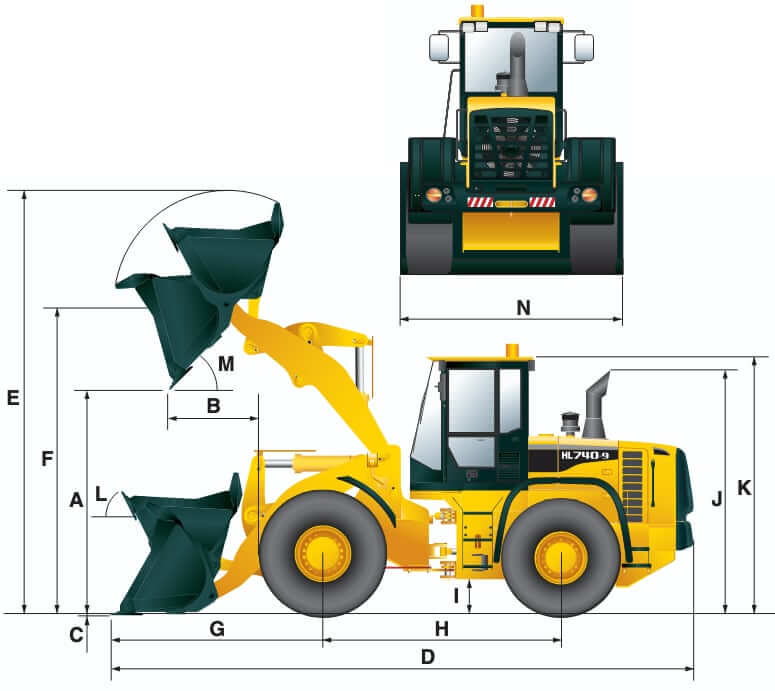

Габаритные размеры
| Ground Clearance | 1 ft (0 m) |
| Height — Top of Cab | 11 ft (3 m) |
| Hinge Pin — Max Height | 13 ft (4 m) |
| Length with Bucket on Ground | 24 ft (7 m) |
| Reach at Max Lift and Dump | 3 ft (1 m) |
| Wheelbase | 10 ft (3 m) |
| Width Over Tires | 9 ft (3 m) |
Двигатель
| Aspiration | Turbocharged |
| Engine Model | QSB6.7 |
| Gross Power | 145 hp (108 kw) |
| Make | Cummins |
| Model | QSB6.7 |
| Net Power | 143 hp (107 kw) |
| Number of Cylinders | 6 |
| Power Measured @ | 2100 rpm |
| Torque Measured @ | 1400 rpm |
Гидравлическая система
| Dump Time | 1.1 seconds |
| Lower Time | 3 seconds |
| Pump Flow Capacity | 41 gpm (155 lpm) |
| Pump Type | Variable Axial Piston |
| Raise Time | 5.5 seconds |
Эксплуатационные характеристики
| Alternator Supplied Amperage | 70 amps |
| Cooling System Fluid Capacity | 9 gal (34 l) |
| Engine Oil Fluid Capacity | 5 gal (18 l) |
| Front Axle/Diff Fluid Capacity | 6 gal (22 l) |
| Fuel Capacity | 58 gal (220 l) |
| Hydraulic System Fluid Capacity | 49 gal (184 l) |
| Operating Voltage | 24 volts |
| Operating Weight | 26,456 lbs (12,000 kg) |
| Rated Bucket Capacity | 3 cu yd (2 cu m) |
| Rear Axle Oscillation | 24 degrees |
| Rear Axle/Diff Fluid Capacity | 6 gal (22 l) |
| Static Tipping Weight | 21,164 lbs (9,600 kg) |
| Tire Size | 20.5-25 |
| Transmission Fluid Capacity | 7 gal (25 l) |
Трансмиссия
| Max Speed — Forward | 24 mph (39 kph) |
| Max Speed — Reverse | 16 mph (25 kph) |
| Number of Forward Gears | 4 |
| Number of Reverse Gears | 3 |
| Transmission Type | Powershift |
Весовые характеристики
| Operational Weight | 26,460 lbs (12,002 kg) |
